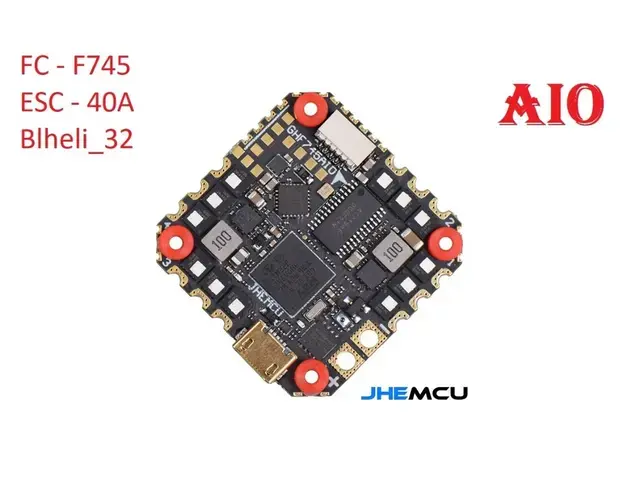

GHF745AIO adopts STM32F745+MPU6000 gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, built-in OSD module, barometer, and black box.

The brushless electrical adjustment part adopts ST G071's 32-bit matched with imported high-power MOS, with a built-in TVS module, eliminating the need to weld TVS modules on the outer part.

• Brand name: JHEMCU
• Model: GHF745AIO
• MCU: STM32F745/216MHZ
• IMU: MPU6000/Gyro/Accel
• OSD: AT7456E
• Baro: YES
• Blackbox: 8MB
• Input voltage: 3S-6S（11.5V-26V）
• 5V-BEC: 5V/2.5A ±0.1V
• 10V-BEC: 10V/2A ±0.1V
• Receiver: ELRS(CRSF), TBS(CRSF), SBUS,IBUS,DSM2,DSMX
• HD: YES
• USART: UART1, UART2, UART3, UART4, UART5, UART6
• IIC: IIC1
• Led Strip: YES
• Buzzer: 5V
• ESC signal: Dshot150，Dshot300，Dshot600
• USB: Micro USB
• Current port: YES
• Voltage sensor: YES
• DFU button: YES
• FC Firmware: betaflight_4.4.2 JHEF745.HEX
• Size: *33MM
• Mounting Hole:25.5*25.5*3MM – M2 with Grommets
• Weight:7.3g

• ESC Current: 40A
• ESC MCU： STM32G071
• ESC TYPE: Blheli_32
• ESC Firmware: JHEMCU_G071_ESC_Multi_32_9.HEX

Packaging List：

• GHF745AIO -40A: x1.
• XT60 Pigtail: x1.
• M2 * 6.5MM Grommets: x4.
• O3 connecting line 5P to 6P: x1.
• 470UF/35V capacitor: x1
• TYPE-C adapter board: x1
• Solder Practice Board: x1
